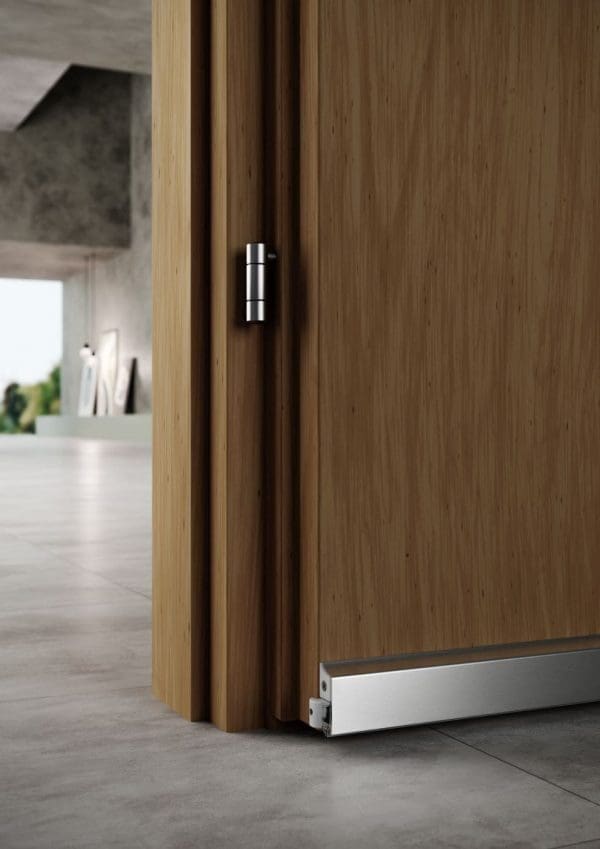

A high-performance surface mounted drop-down seal which automatically closes the gap between the door and the floor when the door is closed.
Perfect for retrofitting, the Applique is 60 minutes fire rated and can be installed on either face of timber doors.
Features & Benefits
- Certifire approved.
- From 280 up to 1830mm to cover single and double leaf single action doors.
- Lock side operation kit for activation on the lock side.
- Available in silver anodised. Other options available on special order.
- Maximum drop 14mm.
- Trimming length up to 150 mm on the opposite side to the plunger.
Areas of Application
For fire-rated doors please refer to the Certifire certificate. For non-fire rated suitable for all door types.
Fire Rating
Fire tested to BS476: Part 20&22: 1987 to 60 minutes
Certificate
CF5995
Acoustic Rating
BS EN ISO 140-3:1995, achieving a rating of up to 28dB Rw.
Smoke Rating
BS EN 1634-3:2004
Guarantee
2 years
Storage Guidance
Keep the items inside their original packaging. Keep the boxes in horizontal position, do not bend or
overlap heavy weights.
Keep stored in a dry place, protected from water, solvents and direct sunlight.
How to Install the Certifire Approved Applique Automatic Drop-Down Seal
Do drop seals 'Self Level'?
Yes, Drop Seals self level to the floor's surface. Threshold plates can be ued to create an aesthetic finish or provide a flat contact area on uneven and irregular floors surfaces.
Can drop seals be cut to the width of the door?
Yes, for trimming and installation instructions please view the product data sheet for the particular drop seal that you are installing.
Do drop seals have to be used with a threshold plate?
Drop Seals are tested with threshold plates but are not necessary.
