FAS Fire Door Gap Gauge

FAS Fire Door Gap Gauge | Stainless Steel Fire Door Gap Measuring Tool

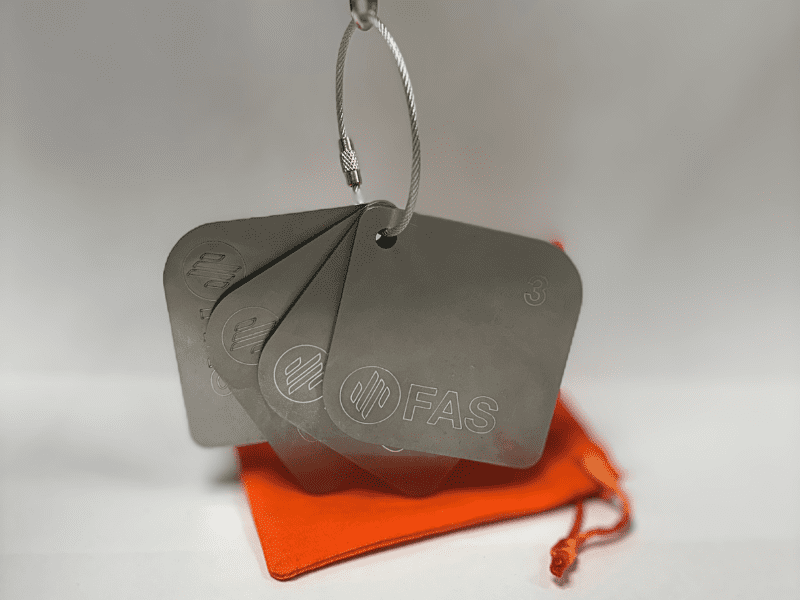

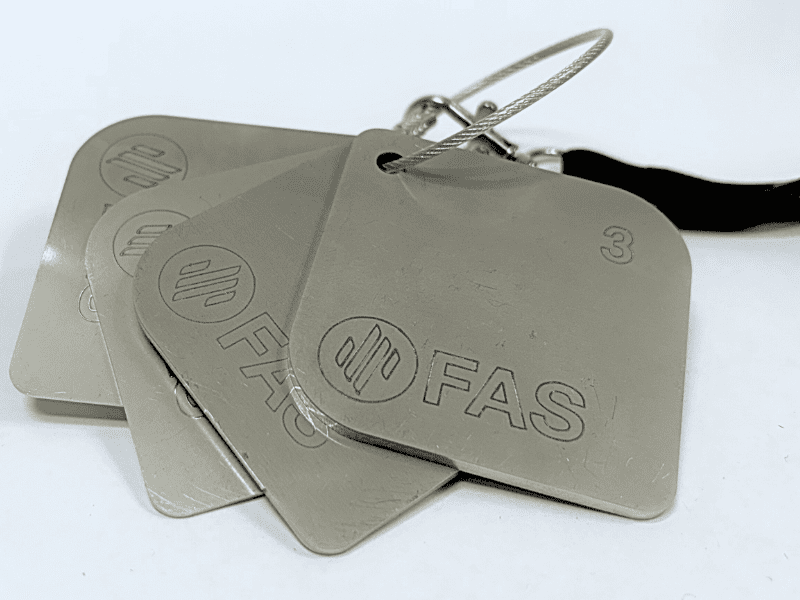

The FAS Fire Door Gap Gauge is a precision measuring tool designed to accurately check the gap between a fire door and its frame. Manufactured from precision laser-cut stainless steel, the set includes four flat shims that can be used individually or combined to measure gaps between 2mm and 4mm.

Unlike wedge-style gap gauges, the flat shim design does not force the door gap open during measurement, helping provide a more accurate reading. Each shim measures 60mm wide, allowing measurements to be taken across a larger section of the door where gaps can naturally vary.

Supplied with a lanyard for convenient carrying, the FAS Fire Door Gap Gauge is a simple solution for measuring fire door clearances.

Key Features

• Precision laser-cut stainless steel gap gauge
• Set of four measuring shims
• Mix and match shims to measure 2–4mm gaps
• Includes 0.5mm, 1.0mm, 2.0mm and 3.0mm shims
• 60mm wide shims for more accurate measurements
• Flat shim design helps prevent the gap from being opened during measurement
• Corrosion-resistant stainless steel
• Lanyard included for easy carrying

Areas of Applications

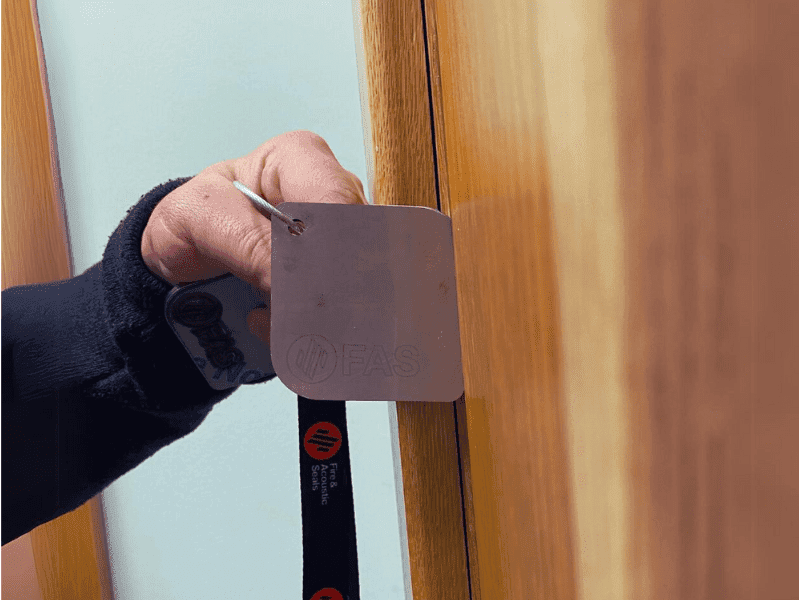

Measuring the gap between a fire door and the frame

Checking fire door clearances around the top and sides of the door

Fire door inspection and maintenance

Fire Performance & Guidance

Recommended Fire Door Gap

Gaps around the top and sides of fire doors should be less than 4mm when the door is closed

Product Specifications

Material: Stainless Steel

Shim Width: 60mm

Shim Thicknesses:

• 0.5mm
• 1.0mm
• 2.0mm
• 3.0mm

Quantity: Set of 4

Corrosion Resistant: Yes

Includes: Lanyard
