FAS Fire Door Intumescent Acrylic Sealant 310ml – Orange

Product Information

£3.11 EXC. VAT

£3.73 Inc. VAT

FREE DELIVERY

For orders over £150 exc VAT

NEXT DAY DELIVERY

On all orders before 4pm

Bulk Discount

£3.11
1 piece
£3.02
24 pieces
£2.95
48 pieces
£2.80
96+ pieces

Quantity

A premium grade intumescent acrylic sealant, that swells to prevent the passage of fire and smoke. It can provide up to 4 hours of fire resistance and is fire, smoke and acoustic rated. Supplied in a 310ml recycled plastic cartridge.



Features & Benefits

  • A halogen-free, polymer-based sealant
  • 60 minutes fire-rated
  • Acoustic tested to achieve 55dB Rw
  • Compatible with standard plastic and timber packers compatible with standard plastic and timber packers
  • Long-lasting flexibility
  • 12.5% joint movement capability
  • Fire protection for FD30-120 fire-rated door sets with FAS Fire Door Foam™
  • *Orange pigments may differ between production batches*
  • Our Intumescent Acrylic Sealant is also available in brown and white for next-day delivery, and grey on special orders.



Areas of Application

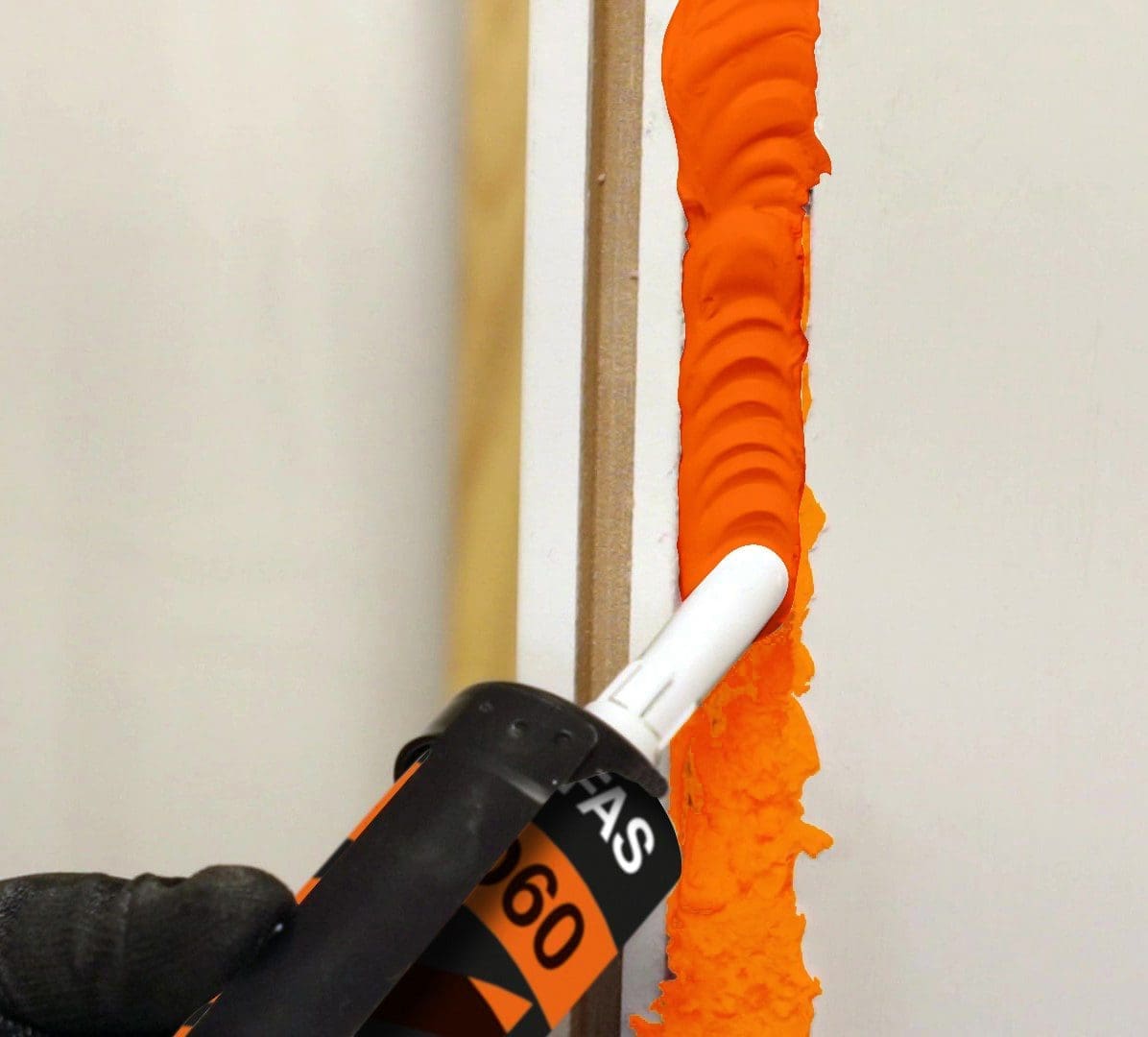

  • Cavity gap filling and perimeter pointing in partition joints and between fire door frames, screens and walls
  • Provides 30-60 minutes of fire resistance for 5mm gaps or below without backing, and 30-120 minutes of fire resistance for gaps up to 25mm with FAS Fire Door Foam™ or stone mineral fibre wool
  • Timber frames - softwood (FD30), hardwood (FD60)
  • Fire Rating
  • Extensively fire tested to 30-120 minutes with fire doorsets in accordance with BS 476: Pt 20 & 22: 1987 and BS EN 1634-1: 2014.



Fire rating

Extensively fire tested to 30-120 minutes with fire doorsets in accordance with BS 476: Pt 20 & 22: 1987 and BS EN 1634-1: 2014.



Certifire Certificate

CF5840



Acoustic Rating

Acoustic tested in accordance with BS EN ISO 10140-2:2010.

Complies with the requirements of Approved Document E.



Smoke Rating

Smoke and leakage tested in accordance with BS EN 1634-3: 2004.



Guarantee

The product can be stored for at least 18 months from its production date when stored in a cool dry environment, in an original unopened container, and at temperatures between +2C and +30C. Do not allow it to freeze.

05 July 2023
FAS Fire Door Intumescent Acrylic Sealant
05 July 2023
FAS Fire Door Foam™ & Fire Door Intumescent Acrylic Sealant for FD90 & FD120
09 August 2023
Installing Fire Doors with FAS Intumescent Acrylic Sealant
Can I add architraves over FAS Fire Door Intumescent Acrylic Sealant?

Architraves are optional, FAS Fire Door Intumescent Acrylic Sealant has been tested with and without.

Can I use FAS Fire Door Intumescent Acrylic Sealant when doorsets are required to have smoke control?

Yes, FAS Fire Door Intumescent Acrylic Sealant has smoke leakage evidence to BS EN 1634-3: 2004.

Do you have to install FAS Fire Door Intumescent Acrylic Sealant with specialist packers or fixings?

No, FAS Fire Door Intumescent Acrylic Sealant and Fire Door Foam™ have been specifically tested with plastic packers and standard screw fixings. Timber and MDF packers may also be used where required.

Does FAS Fire Door Intumescent Acrylic Sealant have a shelf life?

FAS Fire Door Intumescent Acrylic Sealant has an 18-month shelf life whilst stored unopened in temperate conditions (5°C > 30°C).

Does FAS Fire Door Intumescent Acrylic Sealant have an acoustic rating?

Yes, FAS Fire Door Intumescent Acrylic Sealant has sound reduction capabilities of up to 55dB Rw.

What fire rating does FAS Fire Door Intumescent Acrylic Sealant offer?

FAS Intumescent sealant has been fire tested from 30 to up to 120 minutes (BS476 Pt 20&22: 1987 & BS EN1634-1) in timber and timber glazed screens.

What is the minimum and maximum gaps FAS Fire Door Intumescent Acrylic Sealant can be used in?

This can be used to fill widths up to 5mm without backing and a maximum tested gap to 25mm if used with
FAS Fire Door Foam™ or a stone mineral fibre wool.

Can you use Fire Door Foam™ on one side and Acrylic Sealant on the other?

No, Fire Door Foam™ must be applied to both sides and completely fill the void. For gaps up to 5mm, Fire Door Intumescent Acrylic Sealant can be used without backing.
