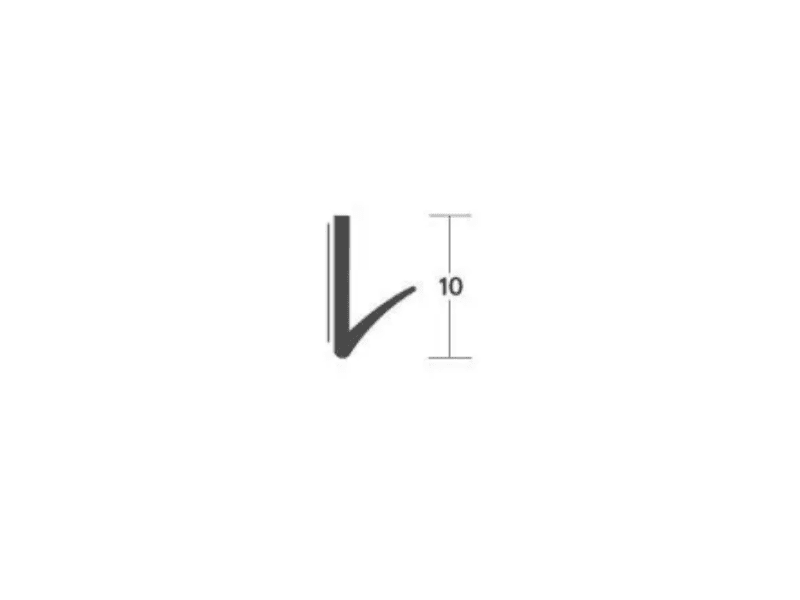

Lorient LAS1206 Batwing® Acoustic & Smoke Seal – 2.1m

Product Information

£3.55 EXC. VAT

£4.26 Inc. VAT

FREE DELIVERY

For orders over £150 exc VAT

NEXT DAY DELIVERY

On all orders before 4pm

Bulk Discount

£3.55
1 piece
£3.20
100+ pieces

Quantity

Lorient's popular LAS1206 Single Batwing® is a medium duty, acoustic and smoke perimeter seal which minimises the opening and closing resistance of the door leaf due to its unique, curved fin. Flexible elastomeric fin material springs back to its original shape to provide ongoing performance and durability in service. They can be fitted with minimal disruption to the door assembly.



Features & Benefits

  • Co-extruded rigid back PVC with flexible fin
  • Heavy duty self-adhesive backing tape
  • UL: R27972
  • Durability: minimum of 100,000 cycles



Areas of Application

Head and jambs of single and  double leaf doors



Acoustic Rating

BS EN ISO 10140-2: 2010 (up to Rw 41dB).



Smoke Rating

BS 476-31.1: 1983. Meets smoke requirement: BS 9999: 2017



Sorry, there are no items available
Can different brands of door seals be combined on a doorset?

No, all door edge seals used on a doorset must be of the same manufacturer and in accordance to the doorset specification.

Can door seals be cut and fitted up against each other?

Yes, a majority of our seals are 2.1m as standard and can be cut to the required length, where the installation is longer they can be butted against eachother. Longer lengths are available upon request.

Can seals be retrospectively fitted to the edge of a door?

Yes. We recommend that the door manufacturer is consulted for further guidance.

Does a brushed seal offer acoustic protection?

No, brushed seals will provide fire and smoke protection. For acoustic protection please see our refer to our range of seals with integrated fins and flippers.

How do I know which door strip to order?

Refer to the test evidence and certification of a door set to identify the correct seals to use.
