CCE Superior Automatic Drop Down Seal – 626mm

SKU: CC-SUPR-1F-626 Categories: , Tag:
Product Information

£18.67 EXC. VAT

£22.40 Inc. VAT

FREE DELIVERY

For orders over £199 exc VAT

NEXT DAY DELIVERY

On all orders before 4pm

Quantity

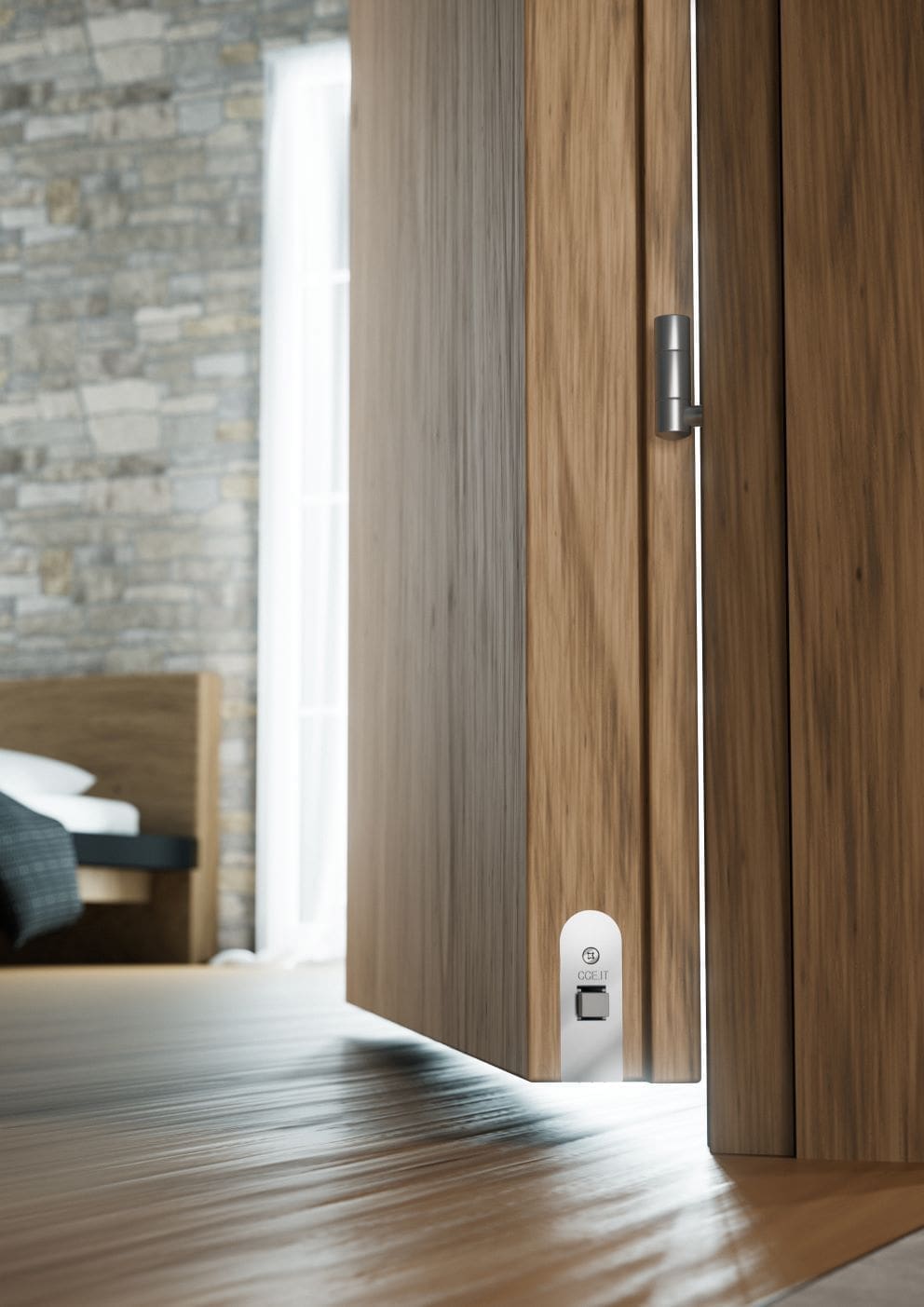

A high-performance recessed drop-down seal which automatically closes the gap between the door and the floor when the door is closed.



The Superior is 60 minutes fire-rated and can be installed in timber fire, smoke and acoustic doors.



Features & Benefits

  • Certifire approved
  • Easy adjustment thanks to the extractable plunger
  • 17 mm drop to cover large gaps under the door panel
  • High performing silicone gasket allowing a 48 dB acoustic rating
  • Maximum drop 17mm
  • For use with or without threshold plates, and straight down to the carpet



Areas of Application

For use in timber doors and fire-rated doors. For fire-rated doors please refer to the Certifire certificate.



Fire Rating

  • Fire tested to BS EN 1634-1: 2014 to 60 minutes.
  • 120 minutes EN1634-1:2014+A1:2018
  • UL-10C



Certificate

CF5995



Acoustic Rating

EN ISO 10140-1&2: 2010 (EN ISO 717-1: 1996), achieving a rating of up to 48dB Rw



Smoke Rating

BS EN 1634-3:2004



Guarantee

2 years



Storage Guidance

Keep the items inside their original packaging. Keep the boxes in horizontal position, do not bend or

overlap heavy weights. Keep stored in a dry place, protected from water, solvents and direct sunlight.

Sorry, there are no items available
Can drop seals be cut to the width of the door?

Yes, for trimming and installation instructions please view the product data sheet for the particular drop seal that you are installing.

Do drop seals 'Self Level'?

Yes, Drop Seals self level to the floor's surface. Threshold plates can be ued to create an aesthetic finish or provide a flat contact area on uneven and irregular floors surfaces.

Do drop seals have to be used with a threshold plate?

Drop Seals are tested with threshold plates but are not necessary.
