FAS Ceramic Fibre Glazing Tape

FAS Ceramic Fibre Glazing Tape 20 x 6mm - 10m Roll is a high-temperature ceramic fibre tape designed for use with insulating and non-insulating fire-resistant glass in internal doors and screens.

The 20mm wide x 6mm thick ceramic fibre glazing tape has high-temperature stability up to 1200°C. When used in conjunction with certain glazing systems, Ceramic Fibre Tape can be used to provide up to 2-hours of fire resistance to the passage of fire.

The tape is supplied as a 10m roll with an easy-peel backing strip for simple installation. It is designed to apply directly to the surface without specialist primers or sealers and can be easily wrapped, cut and shaped.

FAS Ceramic Fibre Glazing Tape has been tested with a wide range of glass types from industry-leading manufacturers and is suitable for use as a bedding material for fire-resistant glazing systems, including applications in commercial buildings and fire doors.

Key Features

• FAS Ceramic Fibre Glazing Tape
• 20mm width x 6mm thickness
• 10m roll
• High-temperature stability up to 1200°C
• Suitable for insulating and non-insulating fire-resistant glass
• Designed for internal doors and screens
• Can provide up to 2-hours of fire resistance to the passage of fire when used in conjunction with certain glazing systems
• Supplied with an easy-peel backing strip
• Easy to wrap, cut and shape
• Applies directly to the surface without specialist primers or sealers
• Tested with a wide range of glass types from industry-leading manufacturers

Areas of Applications

FAS Ceramic Fibre Glazing Tape 20 x 6mm can be used as:

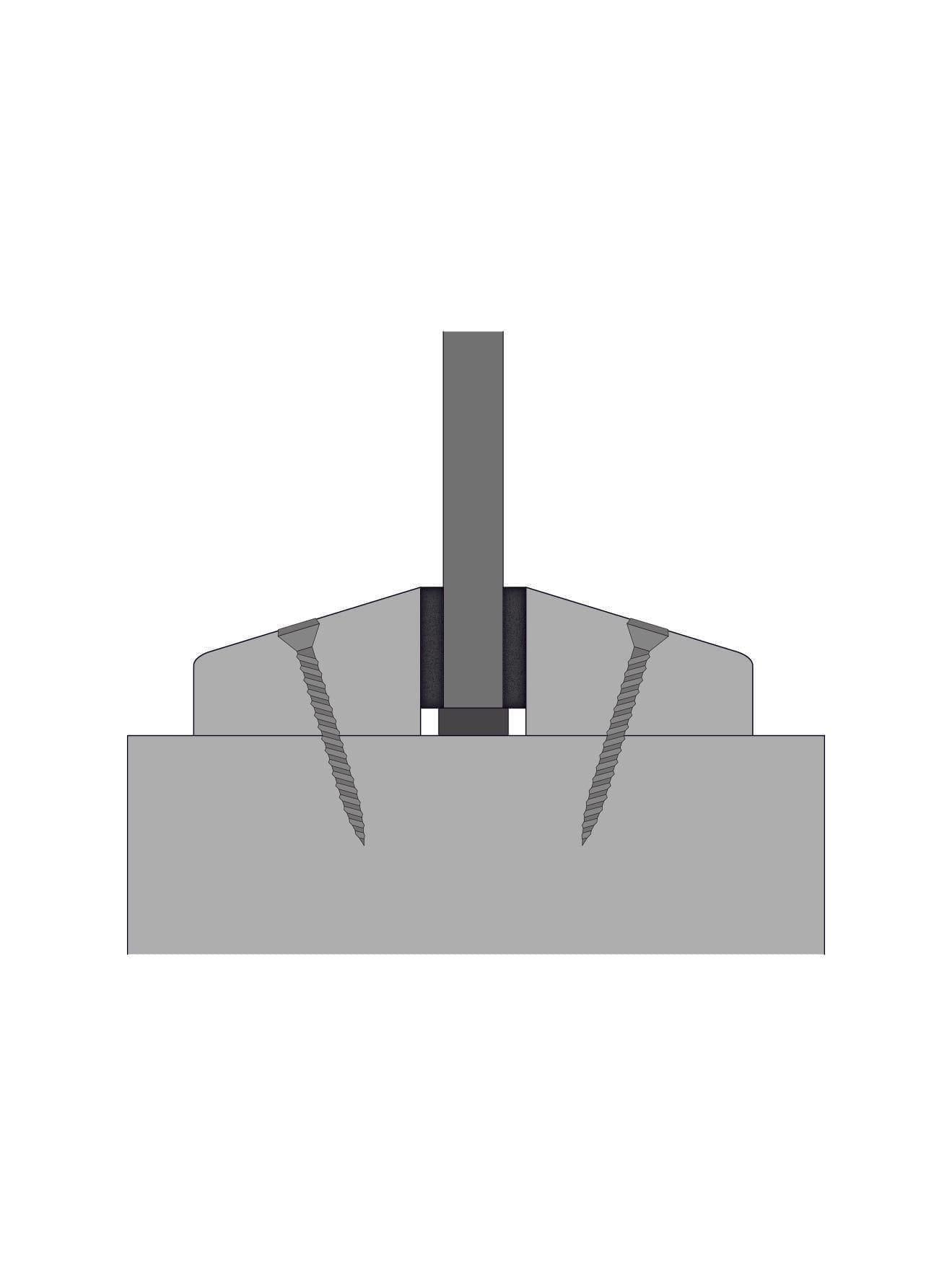

• A bedding material for fire-resistant glazing systems in commercial buildings and fire doors
• High-temperature gaskets and seals for glazing systems
• Fire-resistant gaskets for metal partitions
• Expansion joints
• Fire-resistant glass applications in internal doors and screens

Fire Performance & Certification

FAS Ceramic Fibre Glazing Tape has high-temperature stability up to 1200°C.

When used in conjunction with certain glazing systems, Ceramic Fibre Tape can be used to provide up to 2-hours of fire resistance to the passage of fire.

Use in conjunction with the relevant Certifire glass types and refer to the relevant certificate and glass manufacturer data for the specific application and scope.

Certifire Glass Types

FAS Ceramic Fibre Glazing Tape is listed for use in conjunction with the following Certifire glass types:

• AGC Glass UK: CF5746 & CF377
• Fireglass UK: CF5337
• Pilkington: CF5140 & CF328
• Promat UK: CF5155
• Pyroguard UK: CF5954, CF257, CF5204, CF5319, CF5818 & CF437
• Schott: CF291 & CF386
• Vetrotech Saint-Gobain: CF684 & CF811A
• Glas Trosch AG Fireswiss: CF592 & CF699

Important: Refer to the relevant certificate and glass manufacturer data for application and scope.

Product Specifications

• Product: FAS Ceramic Fibre Glazing Tape
• Type: Ceramic Fibre Glazing Tape
• Width: 20mm
• Thickness: 6mm
• Length: 10m
• Roll Length: 10m
• Temperature Stability: Up to 1200°C
• Backing: Easy-peel backing strip
• Application: Fire-resistant glazing systems
• Glass Compatibility: Tested with a wide range of glass types from industry-leading manufacturers
