Lorient LAS4011 Threshold Plate – 1m
Product Information£27.71 EXC. VAT
FREE DELIVERY
For orders over £199 exc VAT
NEXT DAY DELIVERY
On all orders before 4pm

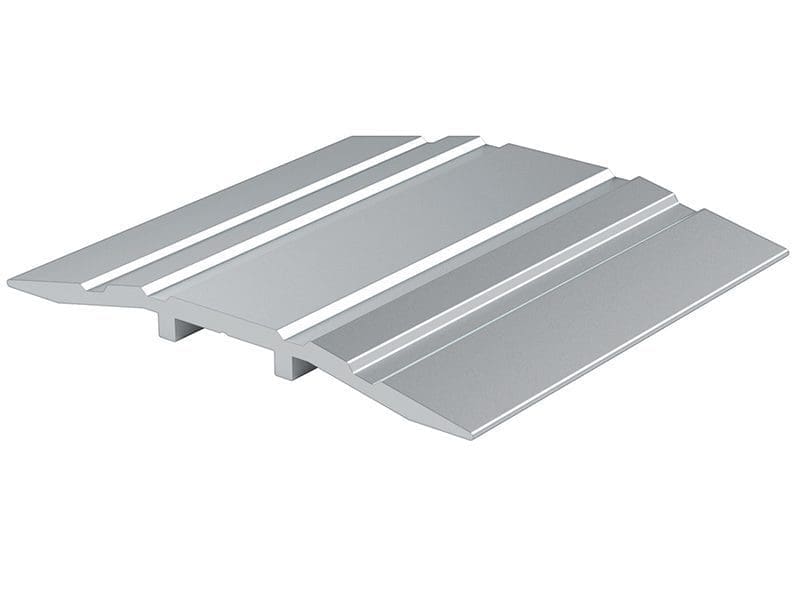

LAS4011 Lorient Aluminium Threshold Plate - 1m
The Lorient LAS4011 Aluminium Threshold Plate - 1m is a low-profile aluminium threshold plate designed to provide an even surface underneath a door and is suitable for wheeled traffic.

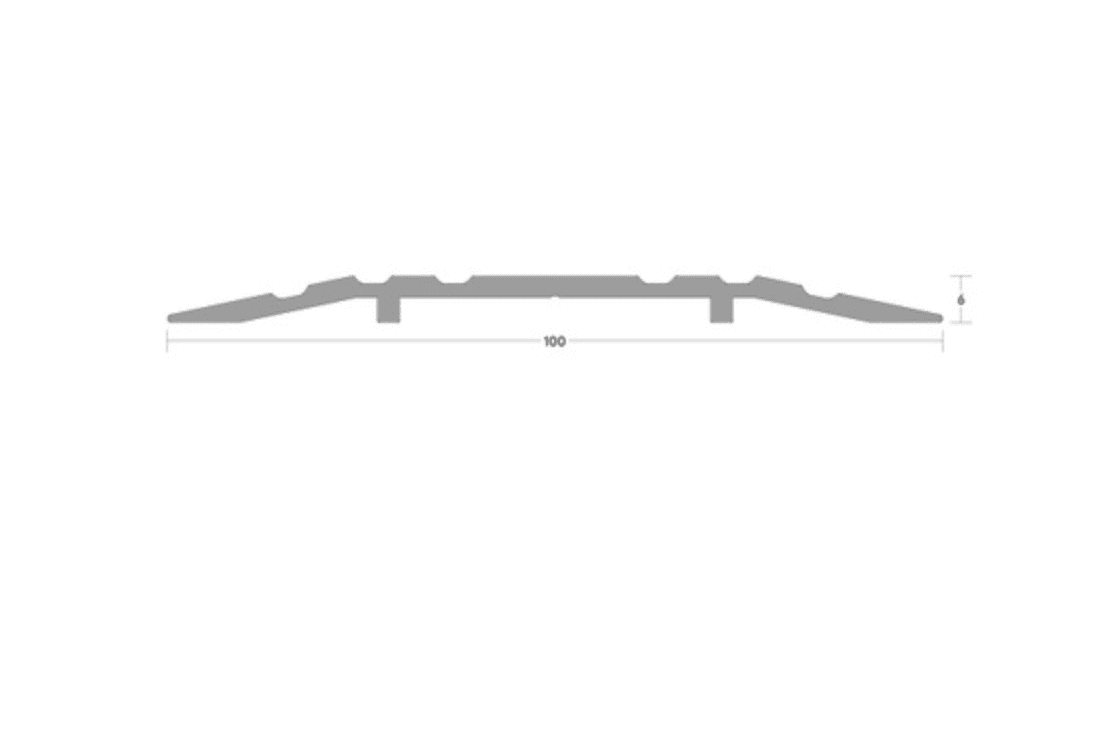

The LAS4011 has a 100mm profile width and is only 6mm high, providing a low-profile threshold solution. It features a silver anodised aluminium finish as standard and is supplied with fixing screws.
The threshold plate can contribute towards smoke, weather, draught and light containment when fitted with a suitable threshold seal. It can also increase the effectiveness of threshold seals by creating a firmer gasket contact.
The LAS4011 is suitable for use with practically any drop or door bottom seal and can be installed on single and double swing doors. Standard lengths are 1m and 2.1m, with other lengths available to special order.
Key Features
- Lorient LAS4011 Aluminium Threshold Plate
- 1m standard length
- 100mm profile width
- 6mm high low-profile design
- Manufactured from aluminium
- Silver anodised aluminium finish
- Suitable for wheeled traffic
- Provides an even surface underneath the door
- Can increase the effectiveness of threshold seals by creating a firmer gasket contact
- Contributes towards smoke, weather, draught and light containment when fitted with a suitable threshold seal
- Suitable for use with practically any drop or door bottom seal
- Suitable for single and double swing doors
- Fixing screws supplied
- Quick and easy installation
Areas of Applications
The Lorient LAS4011 Threshold Plate is suitable for:
- Single swing doors
- Double swing doors
- Doorways requiring an even surface underneath the door
- Applications involving wheeled traffic
- Use with drop seals
- Use with door bottom seals
- Applications where a firmer gasket contact is required between a threshold seal and the floor
Fire Performance & Certification
The Lorient system specifications provide fire test evidence to BS EN 1634-1:2014+A1:2018 for LAS4011 FD30 & FD60.
The LAS4011 can contribute towards smoke containment when fitted with a suitable threshold seal, alongside weather, draught and light containment.
The supplied documentation also shows UL Classified certification R27972 for the threshold plate range.
Product Specifications
- Width: 100mm
- Thickness: 6mm high
- Length: 1m / 1000mm
- Colour: Silver
- Material: Aluminium
- Finish: Silver anodised aluminium
- Fixing: Fixing screws supplied
- Application: Single and double swing doors
- Suitable for: Practically any drop or door bottom seal
- Fire Test Evidence: BS EN 1634-1:2014+A1:2018 – LAS4011 FD30 & FD60
- Certification: UL Classified R27972
Sorry, there are no items available
Do drop down seals need to be used with a threshold plate?
No, drop-down seals and automatic drop seals do not necessarily require a threshold plate to function correctly. Whilst many drop seals are fire tested and acoustically tested with threshold plates, a threshold plate is not always required, depending on the application, floor finish and performance requirements. Threshold plates can help provide a consistent sealing surface and may improve acoustic, smoke or sealing performance in certain installations. Always refer to the product datasheet, fire test evidence and installation guidance to determine the most suitable configuration for your door set.
LAS4011 Lorient Aluminium Threshold Plate - 1m
The Lorient LAS4011 Aluminium Threshold Plate - 1m is a low-profile aluminium threshold plate designed to provide an even surface underneath a door and is suitable for wheeled traffic.
The LAS4011 has a 100mm profile width and is only 6mm high, providing a low-profile threshold solution. It features a silver anodised aluminium finish as standard and is supplied with fixing screws.
The threshold plate can contribute towards smoke, weather, draught and light containment when fitted with a suitable threshold seal. It can also increase the effectiveness of threshold seals by creating a firmer gasket contact.
The LAS4011 is suitable for use with practically any drop or door bottom seal and can be installed on single and double swing doors. Standard lengths are 1m and 2.1m, with other lengths available to special order.
Key Features
- Lorient LAS4011 Aluminium Threshold Plate
- 1m standard length
- 100mm profile width
- 6mm high low-profile design
- Manufactured from aluminium
- Silver anodised aluminium finish
- Suitable for wheeled traffic
- Provides an even surface underneath the door
- Can increase the effectiveness of threshold seals by creating a firmer gasket contact
- Contributes towards smoke, weather, draught and light containment when fitted with a suitable threshold seal
- Suitable for use with practically any drop or door bottom seal
- Suitable for single and double swing doors
- Fixing screws supplied
- Quick and easy installation
Areas of Applications
The Lorient LAS4011 Threshold Plate is suitable for:
- Single swing doors
- Double swing doors
- Doorways requiring an even surface underneath the door
- Applications involving wheeled traffic
- Use with drop seals
- Use with door bottom seals
- Applications where a firmer gasket contact is required between a threshold seal and the floor
Fire Performance & Certification
The Lorient system specifications provide fire test evidence to BS EN 1634-1:2014+A1:2018 for LAS4011 FD30 & FD60.
The LAS4011 can contribute towards smoke containment when fitted with a suitable threshold seal, alongside weather, draught and light containment.
The supplied documentation also shows UL Classified certification R27972 for the threshold plate range.
Product Specifications
- Width: 100mm
- Thickness: 6mm high
- Length: 1m / 1000mm
- Colour: Silver
- Material: Aluminium
- Finish: Silver anodised aluminium
- Fixing: Fixing screws supplied
- Application: Single and double swing doors
- Suitable for: Practically any drop or door bottom seal
- Fire Test Evidence: BS EN 1634-1:2014+A1:2018 – LAS4011 FD30 & FD60
- Certification: UL Classified R27972
Sorry, there are no items available
Do drop down seals need to be used with a threshold plate?
No, drop-down seals and automatic drop seals do not necessarily require a threshold plate to function correctly. Whilst many drop seals are fire tested and acoustically tested with threshold plates, a threshold plate is not always required, depending on the application, floor finish and performance requirements. Threshold plates can help provide a consistent sealing surface and may improve acoustic, smoke or sealing performance in certain installations. Always refer to the product datasheet, fire test evidence and installation guidance to determine the most suitable configuration for your door set.
