Lorient System 90 PLUS Glazing Channel

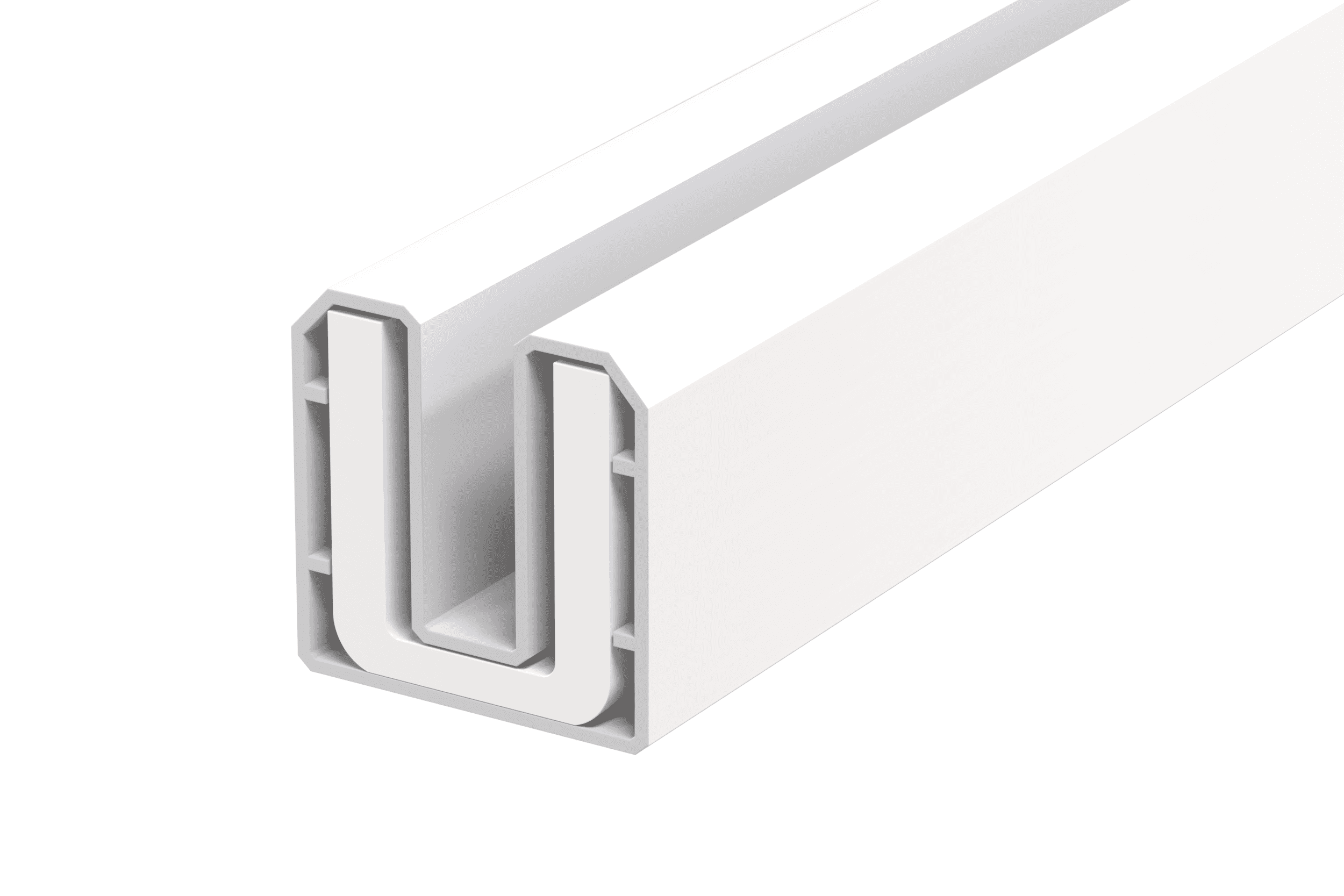

Lorient's System 90 PLUS is designed for 60-minute fire-resistant doors and screens, comprising of a U-shaped PVC profile containing an intumescent core and a liner. It provides 90 minutes fire-resistance when using a suitable door and screen construction.

120 minutes fire-resistance can only be achieved when a suitable door construction is used.

Features & Benefits

• Sodium silicate intumescent within a rigid PVC profile
• Secondary sodium silicate intumescent material supplied for use as lining around the perimeter of the aperture
• Only suitable for use with 6mm Georgian wired glass, Pyran-S® or 5mm Firelite®
• Must be used with a liner and beading to prevent erosion from under the system
• Provides 60 minutes fire resistance. For applications 90 minutes and above please refer to test evidence or contact us

Areas of Application

FD60 fire doors and timber framed screens

Fire Rating

BS 476-22:1987

Certifire Certificate

CF185
