Pyroplex® 10 x 4 Fire & Smoke Seal (Grey Brush) 2.1m

Product Information

£1.47 EXC. VAT

£1.76 Inc. VAT

FREE DELIVERY

For orders over £150 exc VAT

NEXT DAY DELIVERY

On all orders before 4pm

Quantity

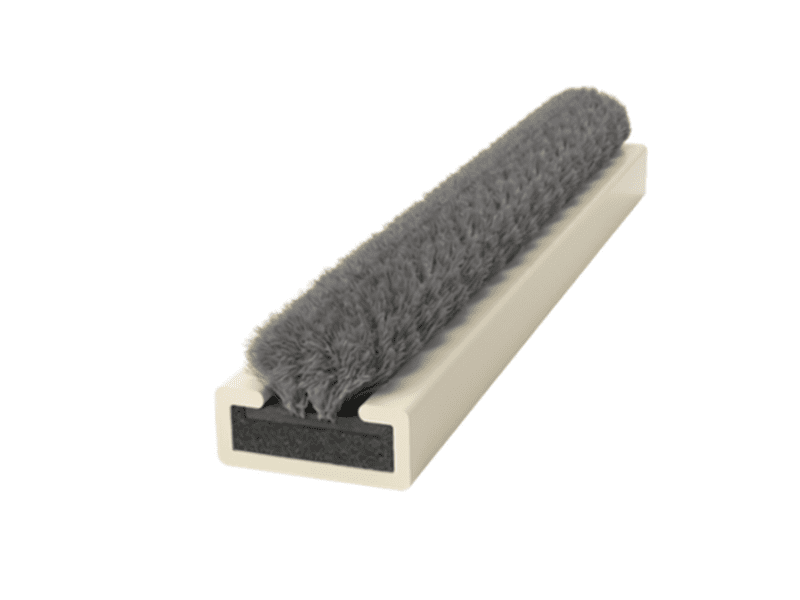

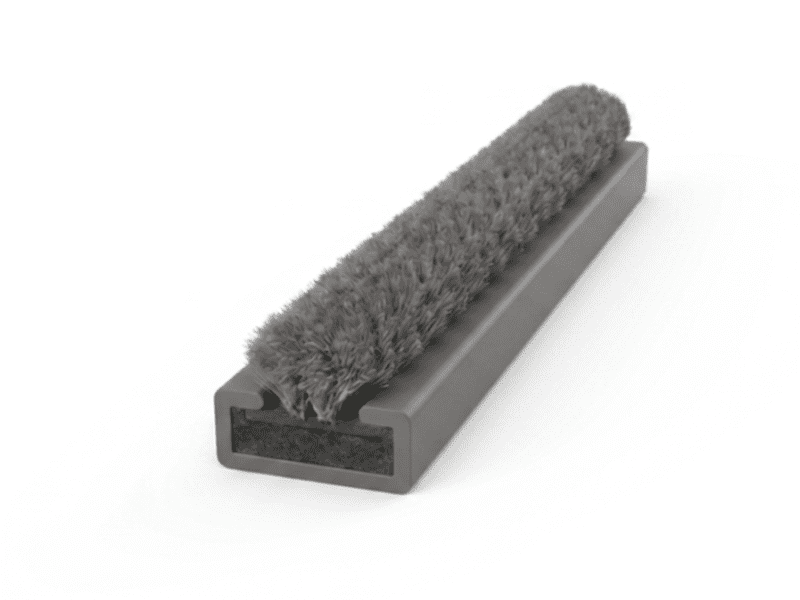

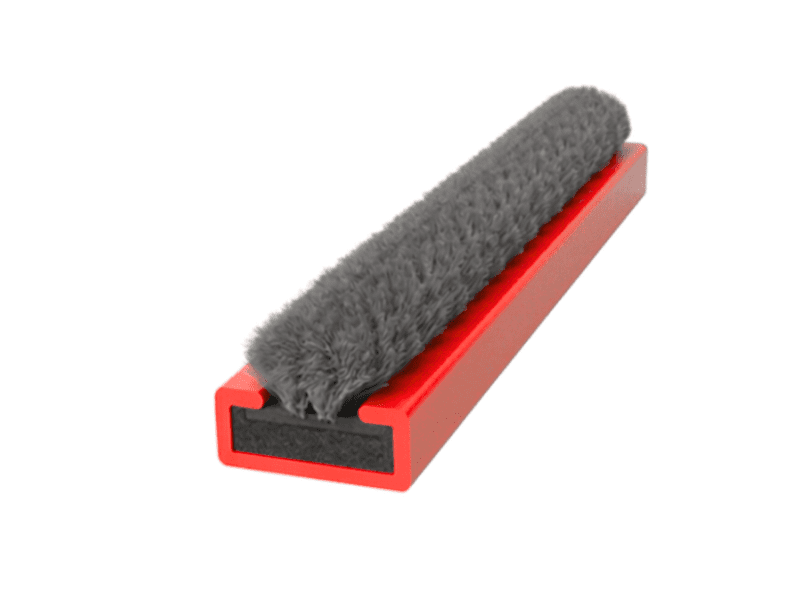

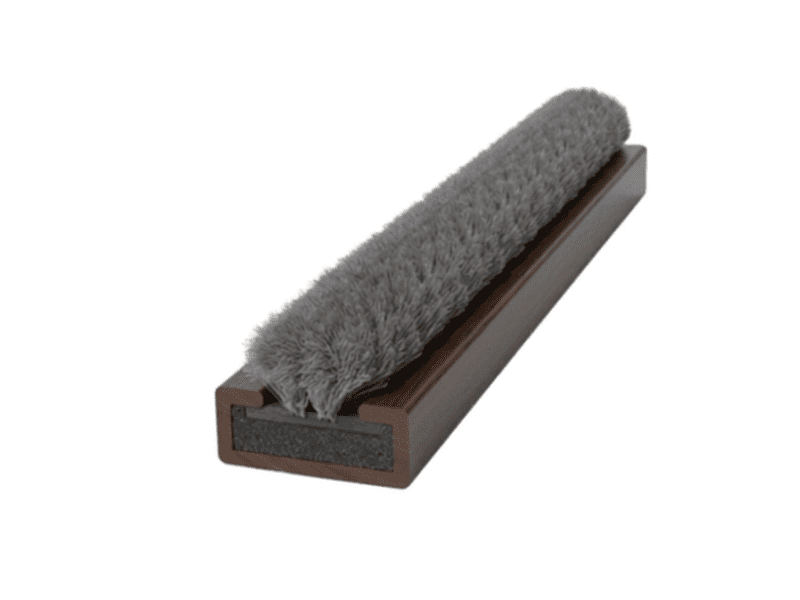

This intumescent strip with brush pile provides a traditional fire, smoke and acoustic seal for fire rated timber door edges and frames.

Features & Benefits

  • Provides fire, smoke and acoustic resistance.
  • Supplied with a self-adhesive backer for ease of application.
  • Specifically designed for use on single and double action leaf doors when both latched and unlatched.
  • Identification on each product ensures full traceability.
  • Suitable for both new build and retro-fit applications.

Areas of Application

10mm Seals: Fire rated timber doorsets with 30 minute requirements
15-25mm Seals: Fire rated timber doorsets with 30 to 60 minute requirements

Fire Rating

BS 476: Part 20/22 and BS EN 1634-1

Certifire Certificate

CF355

Acoustic Rating

BS EN ISO 10140-2

Smoke Testing

BS 476: Part 31.1 and BS EN 1634-3

Sorry, there are no items available
Can different brands of door seals be combined on a doorset?

No, all door edge seals used on a doorset must be of the same manufacturer and in accordance to the doorset specification.

Can door seals be cut and fitted up against each other?

Yes, a majority of our seals are 2.1m as standard and can be cut to the required length, where the installation is longer they can be butted against eachother. Longer lengths are available upon request.

Can seals be retrospectively fitted to the edge of a door?

Yes. We recommend that the door manufacturer is consulted for further guidance.

Does a brushed seal offer acoustic protection?

No, brushed seals will provide fire and smoke protection. For acoustic protection please see our refer to our range of seals with integrated fins and flippers.

How do I know which door strip to order?

Refer to the test evidence and certification of a door set to identify the correct seals to use.
