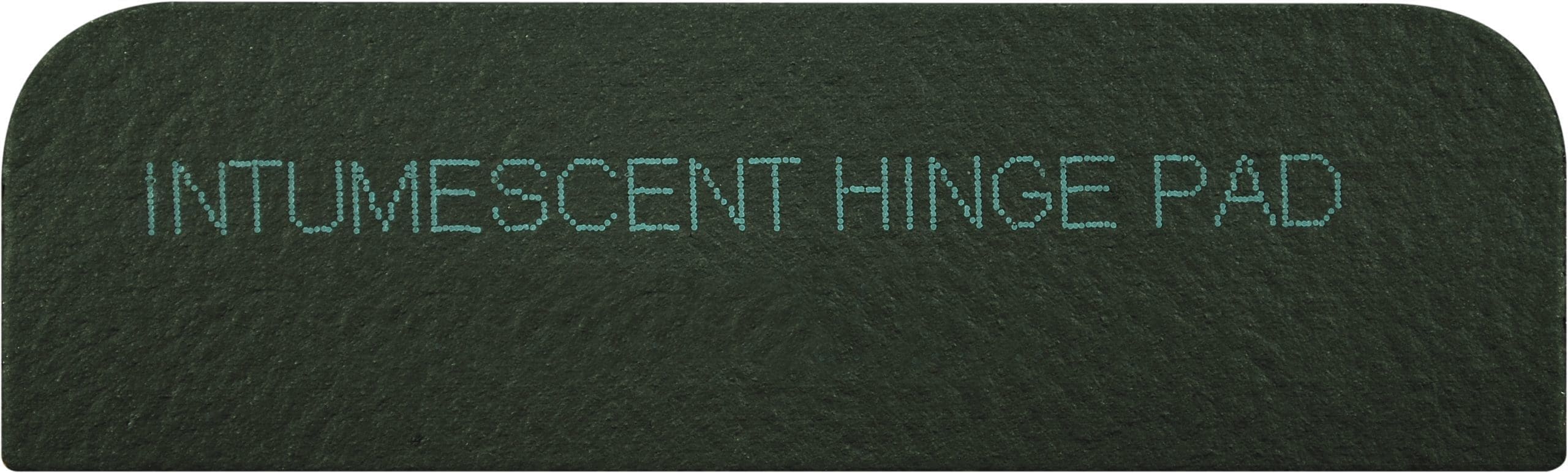

Flexifire Intumescent Hinge Pad – Radius – 1mm

FlexiFire, the thin and flexible graphite based material is made to suit a wide range of hinges, and comes with full traceability and 3rd party accreditation for 30 & 60 minute applications. Supplied with a 10mm radius and a full self-adhesive backing. If we do not have a size to suit a particular hinge, we offer a bespoke design service allowing us to meet your design specification.

Features & Benefits

• Size 30  x 100 x 1mm
• Colour - graphite
• 3rd party accreditation for 30 & 60 minute EN 1634 -1 applications
• Full traceability
• Suitable for 30 & 60 minute applications
• Multi-directional expansion

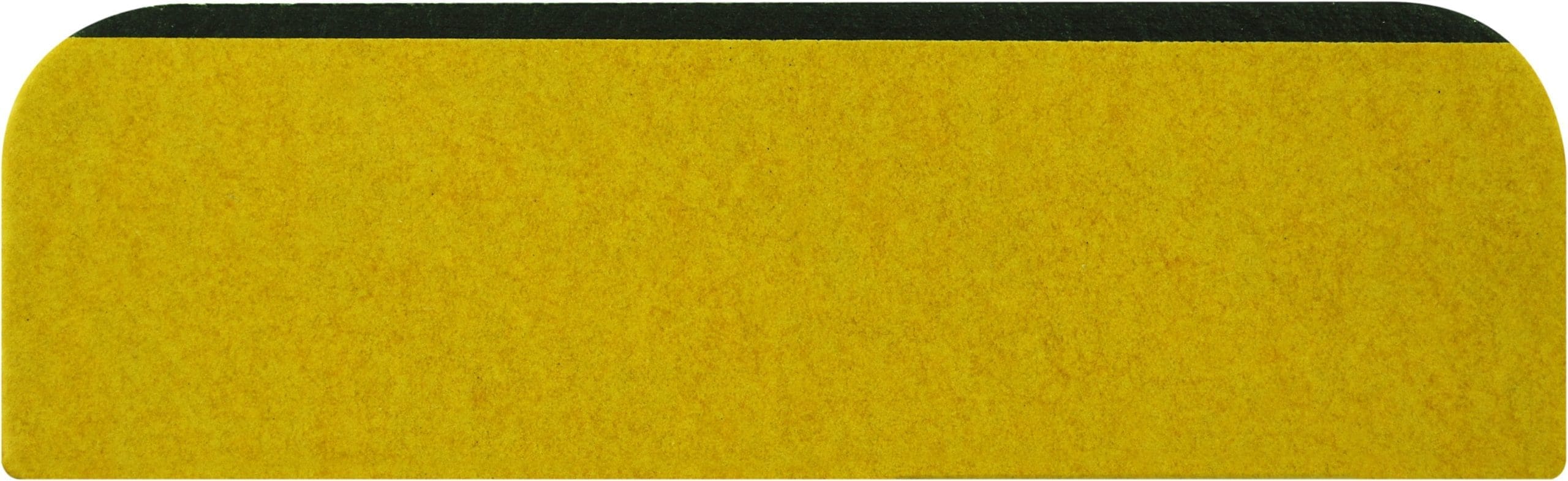

• Supplied with self-adhesive backing
• Unaffected by moisture, humidity, atmospheric pollution and other common industrial and household chemical substances.

Areas of Application

Fire-rated hinges

Fire Rating

Suitable for: BS 476 Part: 22 30 & 60 minutes / EN 1634-1 30 & 60 minutes

Guarantee

100 year life expectancy

Storage Guidance

Store dry in a cool place (not above 35°c)
