Lorient LP2004DS Fire, Smoke & Acoustic Seal – 20 x 4mm – 2.1m
Product Information£4.71 EXC. VAT

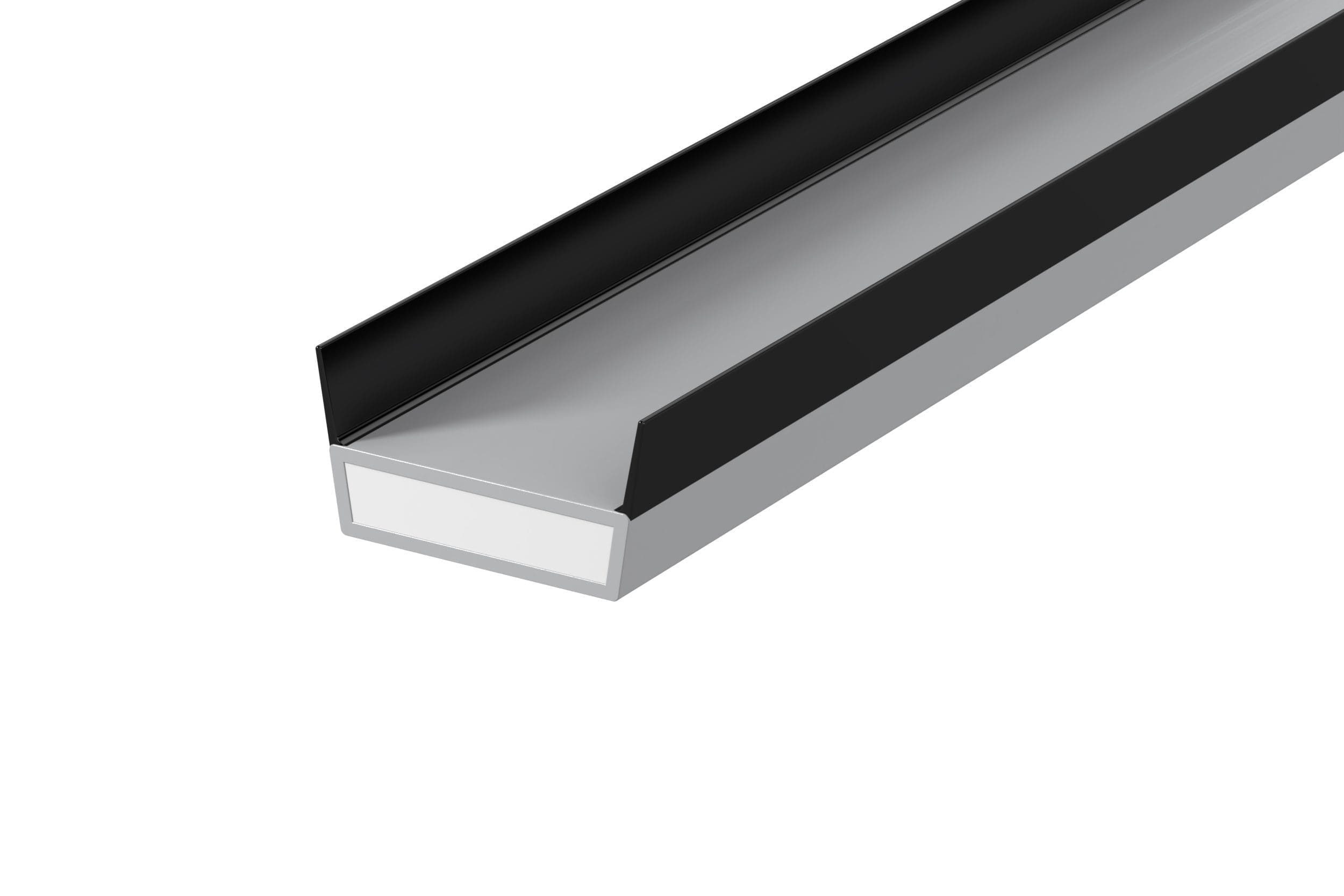

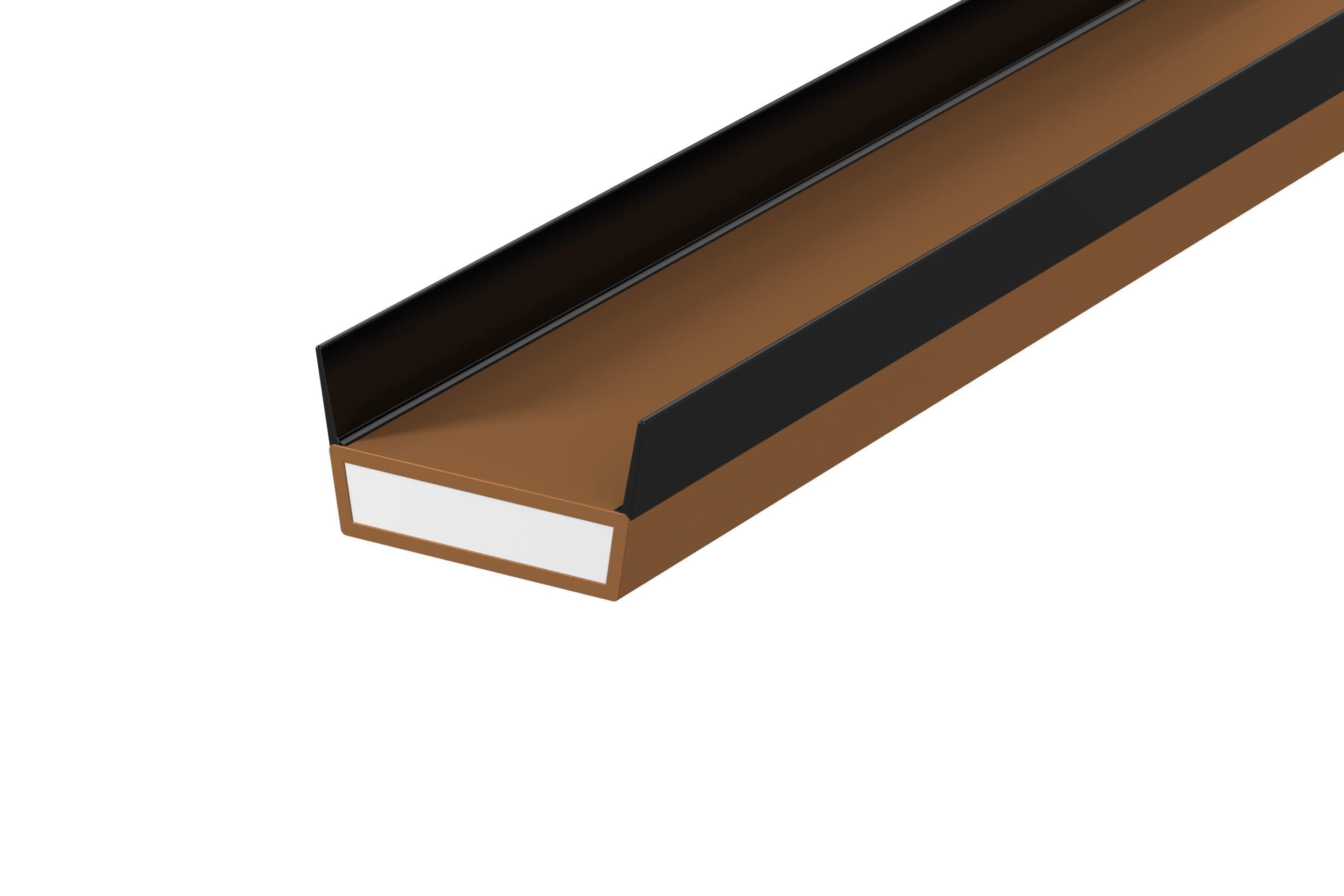

Lorient's DS door seal offers the ultimate in acoustic, smoke and fire protection, with the added benefit of thermal containment. Its unique design means that whichever way round the product is installed, the seal can always be fitted in the correct place, maintaining the integrity of the acoustic and smoke seal at the ironmongery points.
Features & Benefits
- PVC encased sodium silicate and flexible elastomeric fins
- Available in a range of standard colours, with black fins to blend or contrast with the doorset as required.
- Heavy duty self-adhesive backing tape
- Durability: 100,000 cycles
- BBA: 92/2841
- IFC: FRPP454
Areas of Application
Single and double leaf doors
Fire Rating
BS EN 1634-1:2008 & BS 476-22:1987.
Certificate
CF330 and CF341
Acoustic Rating
BS EN ISO 10140-2: 2010.
Smoke Rating
BS 476-31.1: 1983. Meets smoke requirement: BS 9999: 2017
Sorry, there are no items available
Can different brands of door seals be combined on a doorset?
No, all door edge seals used on a doorset must be of the same manufacturer and in accordance to the doorset specification.
Can door seals be cut and fitted up against each other?
Yes, a majority of our seals are 2.1m as standard and can be cut to the required length, where the installation is longer they can be butted against eachother. Longer lengths are available upon request.
Can seals be retrospectively fitted to the edge of a door?
Yes. We recommend that the door manufacturer is consulted for further guidance.
Does a brushed seal offer acoustic protection?
No, brushed seals will provide fire and smoke protection. For acoustic protection please see our refer to our range of seals with integrated fins and flippers.
How do I know which door strip to order?
Refer to the test evidence and certification of a door set to identify the correct seals to use.
