Lorient LAS9070 SI Finger Guard Seal – 2.1m

Lorient LAS9070 SI Finger Guard Seal - hinge cavity side

The Lorient LAS9070 SI Finger Guard Seal is a medium-duty finger guard designed for the hinge cavity side of hinged doors. It forms part of a finger protection system that helps shield fingers from being trapped in hinge gaps. For a complete system, it is designed to be used in conjunction with the LAS9050 SI on the hinge knuckle side.

Key Features

• Medium-duty finger guard seal for hinged doors.

• Designed specifically for the hinge cavity side of the door.

• Silver anodised aluminium finish with a grey cover strip and grey gasket as standard.

• Silicone seal material provides flexibility.

• Pre-drilled and slotted fixing holes allow accurate positioning.

• Fixings supplied – self-tapping wood screws and PVC cover strips.

• Standard length 2.1 m (other lengths available to special order).

Areas of Application

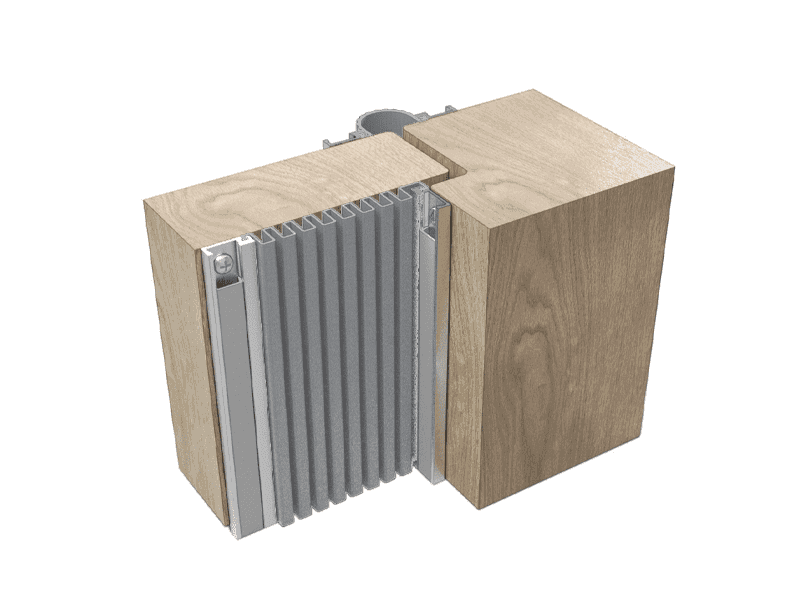

• Suitable for use on the jambs of hinged doors – hinge cavity side.

• Can be installed on doors with up to 180° opening.

• Designed to integrate with the LAS9050 SI for comprehensive finger protection on both sides of the door.

Fire Performance & Certification

• The LAS9070 SI forms part of the Lorient finger guard seal system that has test evidence to BS 8613:2017 (Finger protection devices for pedestrian doors – Type A, Class 1).

• Note: This is a finger protection seal and is not promoted as a fire-rated seal on its own. For fire performance, additional fire, smoke and acoustic sealing products should be specified separately where required.

Product Specifications

Seal Material: Silicone

Finish (standard): Silver anodised aluminium with grey cover strip & grey gasket

Length: 2.1 m (standard)

Fixings: Self-tapping wood screws with PVC cover strips

Suitable Door Opening: Up to 180°

Compatibility: Designed to be used with the LAS9050 SI for a full finger protection system
